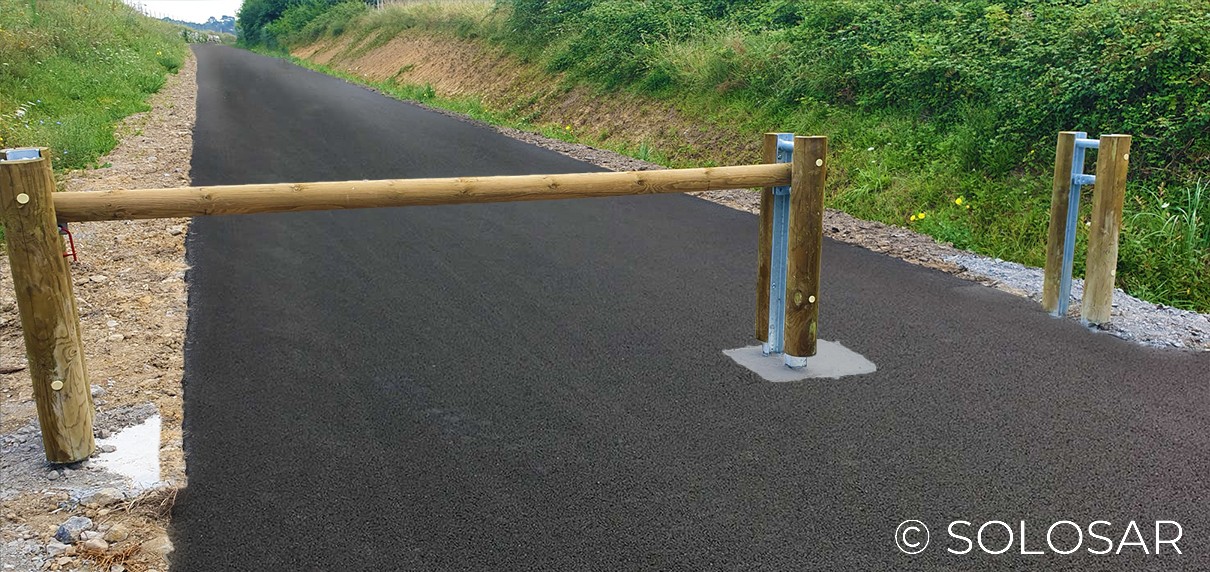

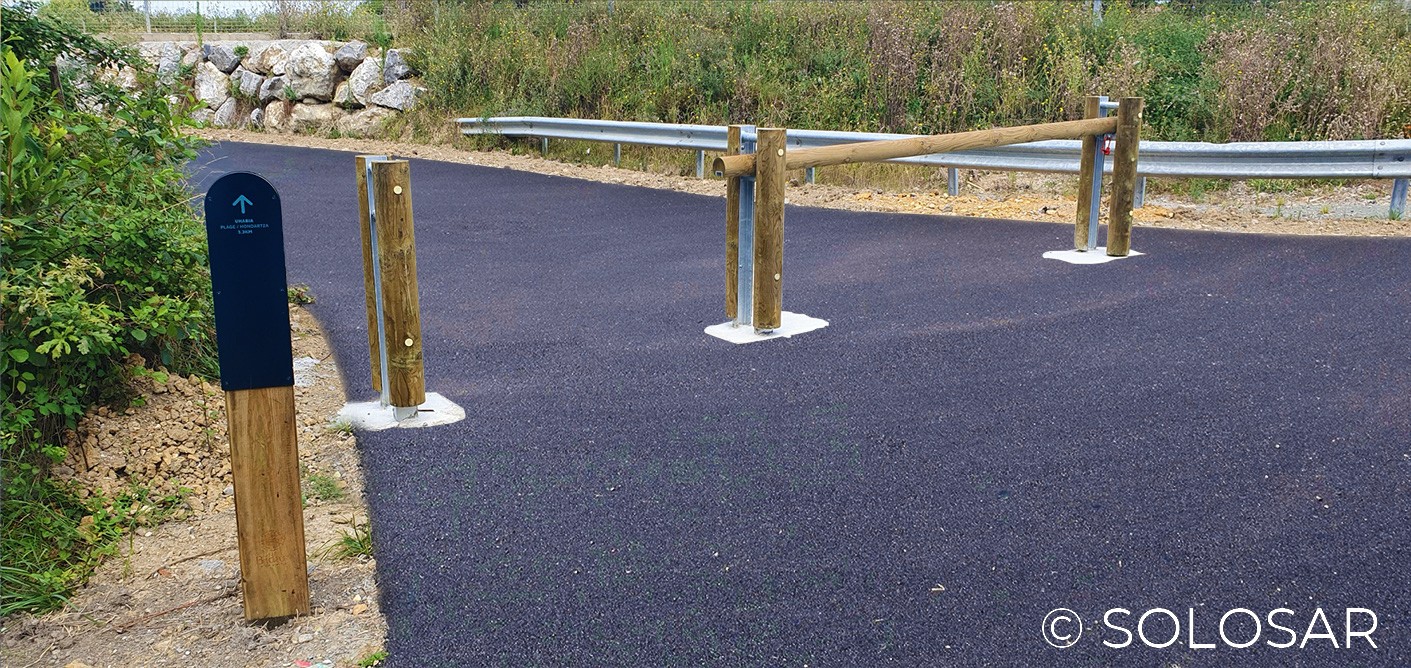

Reinforced swivel gate

The reinforced swivel gate is an exclusive product thanks to a combined structure of hot-dip galvanized steel for strength and functionality, and autoclaved cl. 4 solid wood with wood cladding for aesthetic appeal. A safe, long-lasting access control system combining the aesthetics of wood with the strength of galvanized steel. Available in 3 m lengths.

This mixed wood and steel model has been specially developed against vandalism and incorporates a galvanized steel profile clad in wood on the horizontal beam and uprights.

EXCLUSIVE PRODUCT BENEFITS:

• Mixed wood and steel: robustness, aesthetics and durability
• Benefits: less vandalism, lower maintenance costs and constant security.
• Installation: support to be embedded in concrete block
• Rail and stiffener: total control of plumbness
• Locking (closed position): by steel pin to be inserted in the pivoting support and fireman's padlock + key (optional)
• Made in France (Moselle)

OPTIONS: see product sheet in "Downloads" section

• Solid wood receiver post for holding in open position
• Fireman's padlock + key with red epoxy paint for locking your gates
• Intelligent padlock and key for unique access management

SPECIFICATIONS:

• Steel components: S235 JR hot-dip galvanized to ISO 1461
• Solid wood components: autoclaved Scots pine class 4 to EN 335, guaranteed 10 years against rotting
• Posts: preassembled wood-steel combinations (UPN100 with Ø160 cladding)
• Hinges with grease nipple
• Overall dimensions: 3 m (width) x 1 m (height)
• Typical application: restricting access to motorized vehicles on greenways, cycle paths and other pedestrian paths, speed reduction for cyclists, etc.

Custom-made products available on request: click here to contact us please.
