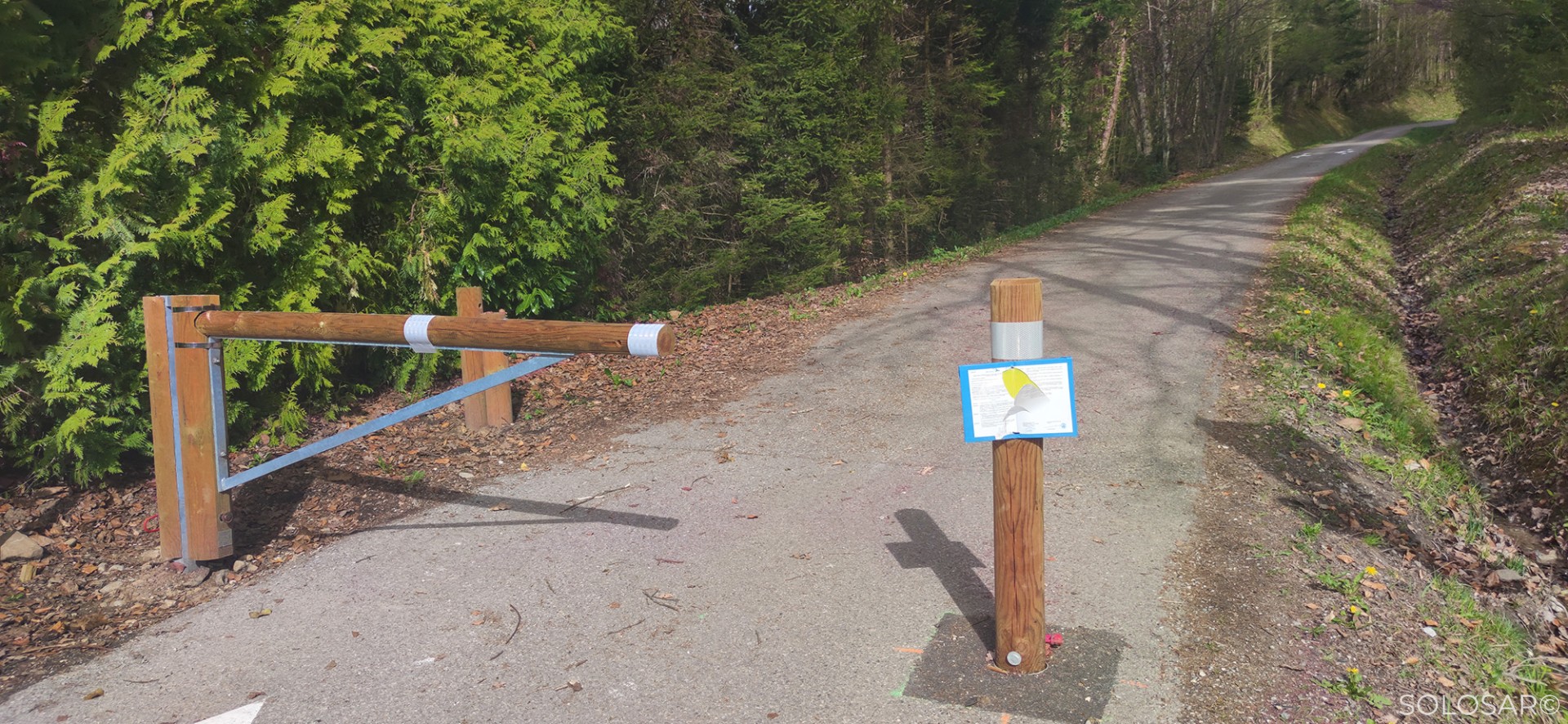

Reinforced swivel gate single sided

The SOLONATURE single swing gate is one of Europe's best-sellers, thanks to its combined structure of hot-dip galvanised steel for strength and functionality, and class 4 autoclaved solid wood with wood cladding for aesthetic appeal. A safe, durable access control system that combines the aesthetics of wood with the strength of galvanised steel.

This model is designed for use on narrow lanes.

EXCLUSIVE PRODUCT BENEFITS :

• Combination of wood and steel: robust, attractive and durable
• Reduced vandalism, controlled maintenance budget and constant safety
• Installation: support to be embedded in concrete block
• Rail and stiffener: total control over plumbness
• Locking (closed position): by steel pin to be inserted in the solid wood support and fireman's padlock + key (see options)
• Made in France (Moselle)

Available in double beam

OPTIONS :

• Solid wood receiver post assembly for holding in open position
• Firefighters' padlock + red epoxy-painted braided key for locking your barriers
• Intelligent padlock and key for unique access management

SPECIFICATIONS:

Steel components: S235 JR hot-dip galvanised to ISO 1461

Solid wood components: autoclaved Scots pine class 4 to EN 335, guaranteed for 10 years against rotting

Stiles: pre-assembled mixed wood and steel (UPN100 with Ø160 cladding) Hinges with grease nipple

Clearance width: 2 m or 3 m (width) x 1 m (height)

With solid wood supports in closed position

Typical application: restricting access to motorised vehicles on greenways, cycle paths and other pedestrian routes, reducing speed for cyclists, etc.

Specify opening direction (right or left) when ordering.

Custom-made products available on request: click here to contact us please.
