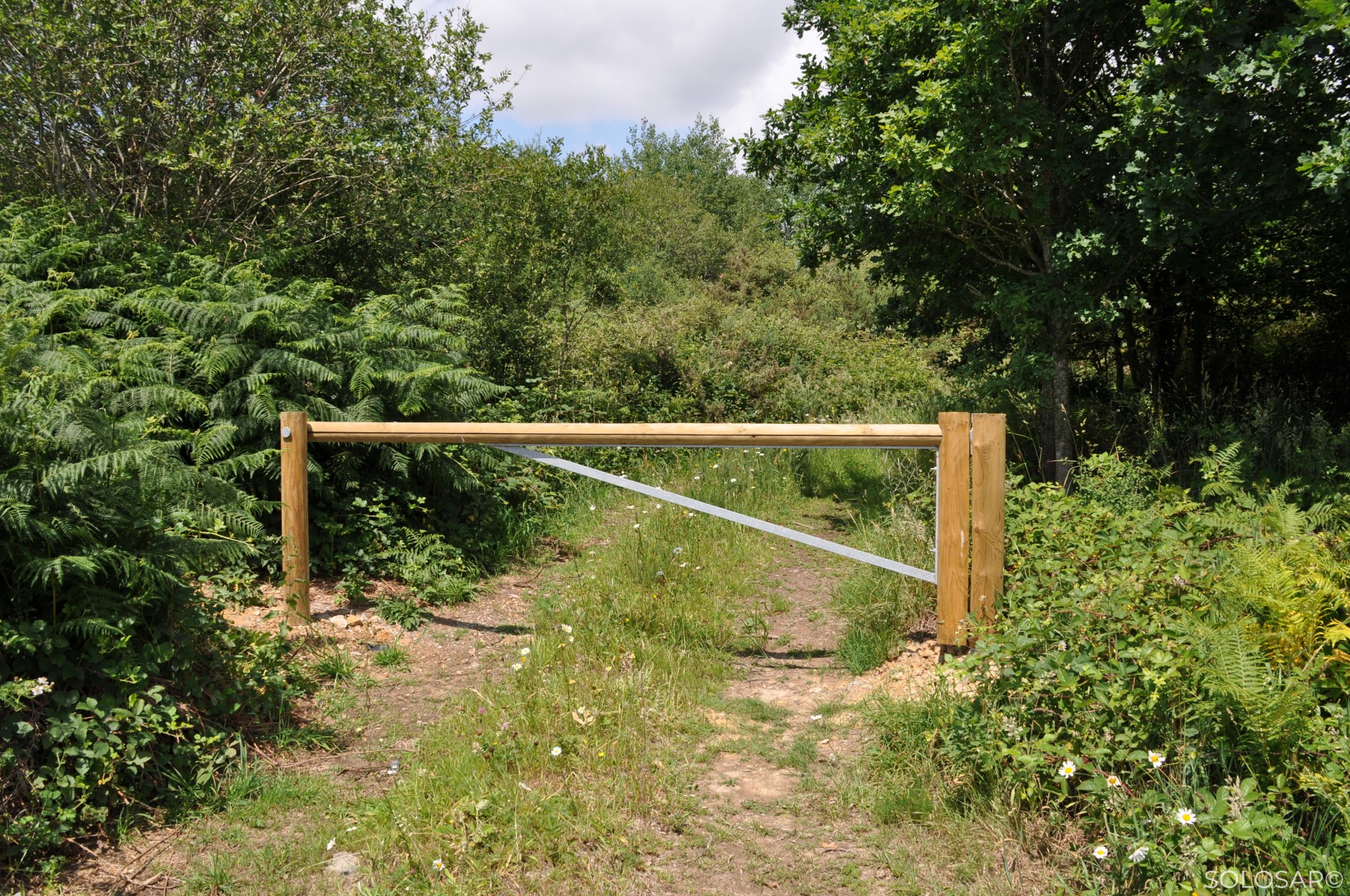

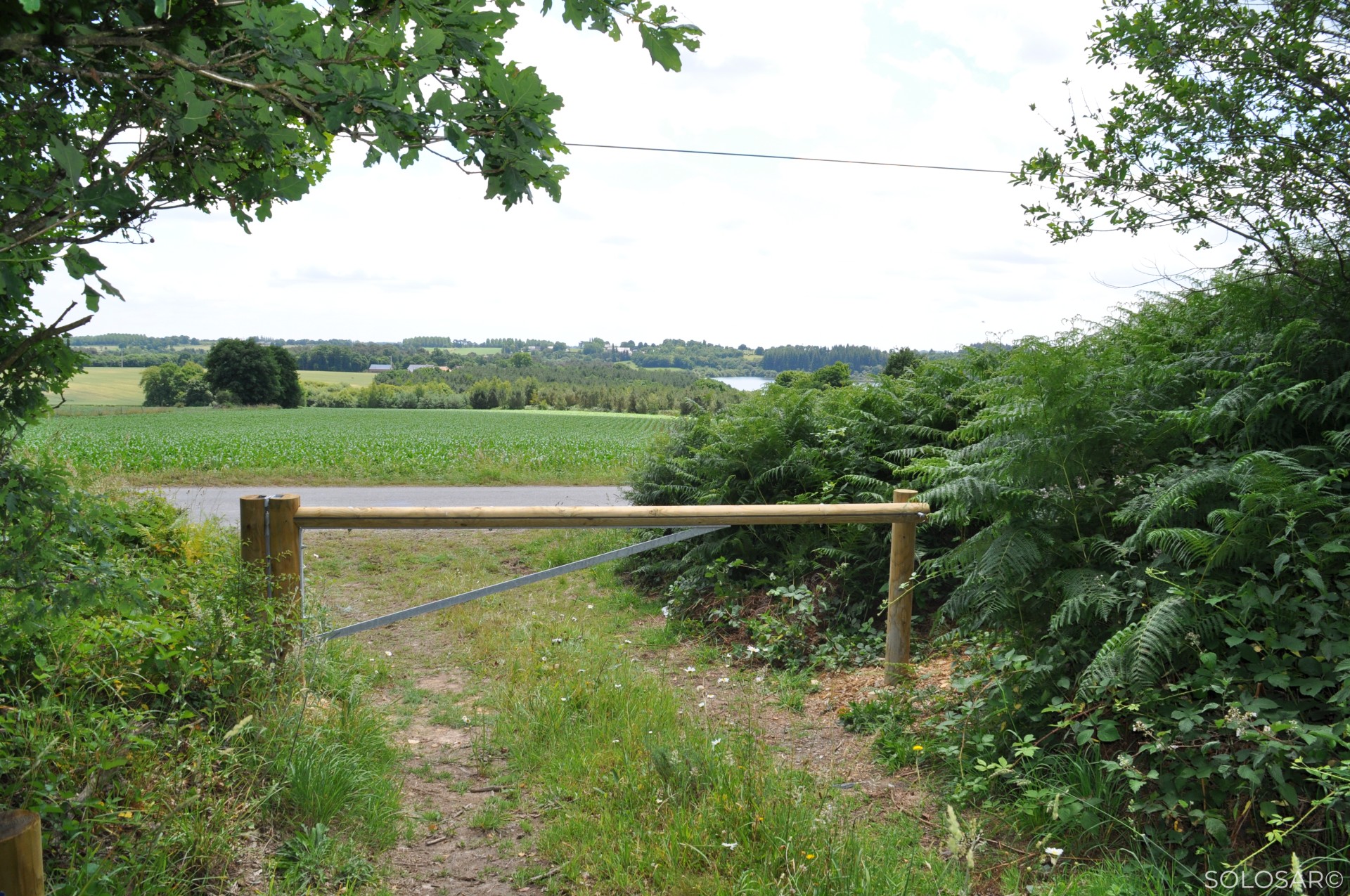

Wood and steel reinforced EDGE swing gate

The EDGE single-leaf reinforced swing gate is an exclusive product with a combined structure made of hot-dip galvanised steel for strength and functionality, and class 4 autoclaved solid wood with wood cladding for aesthetic appeal. A safe, durable access control system that combines the aesthetics of wood with the strength of galvanised steel. Available in lengths of 3 and 4 m, it can be doubled to create a double gate.

This mixed wood and steel model has been specially developed to protect against vandalism, and features a square galvanised steel section clad in wood.

EXCLUSIVE PRODUCT BENEFITS:

• Square steel profile 40x40x5 mm integrated along the entire length of the wooden rail for extreme resistance to vandalism.
• Combination of wood and steel: robust, attractive and durable
• Reduced vandalism, controlled maintenance budget and constant security
• Installation: support to be embedded in concrete block
• Rail and stiffener: total control over plumbness
• Integrated receiver post
• Locking (closed position): by steel pin to be inserted in the mixed steel and wood counter-support and fireman's padlock + key (see options)
• Made in France (Moselle)

OPTIONS: see product sheet in the "Downloads" section

• Fireman's padlock + key with red epoxy paint for locking your barriers
• Intelligent padlock and key for unique access management

SPECIFICATIONS:

Steel components: S235 JR hot-dip galvanised to ISO 1461

Solid wood components: class 4 autoclaved Scots pine to EN 335, guaranteed for 10 years against rotting.

Support: pre-assembled wood-steel combination (UPN100 with Ø160 trim)

Hinges with grease nipple

Clearance width: 3 and 4 m (width) x 1.00 m (height)

Typical application: restricting access to motorised vehicles on greenways, cycle paths and other pedestrian routes, reducing speed for cyclists, etc.

Custom-made products available on request: click here to contact us please.
