Double-leaf pivoting height restriction gantry - steel with solid wood cladding - HGV special

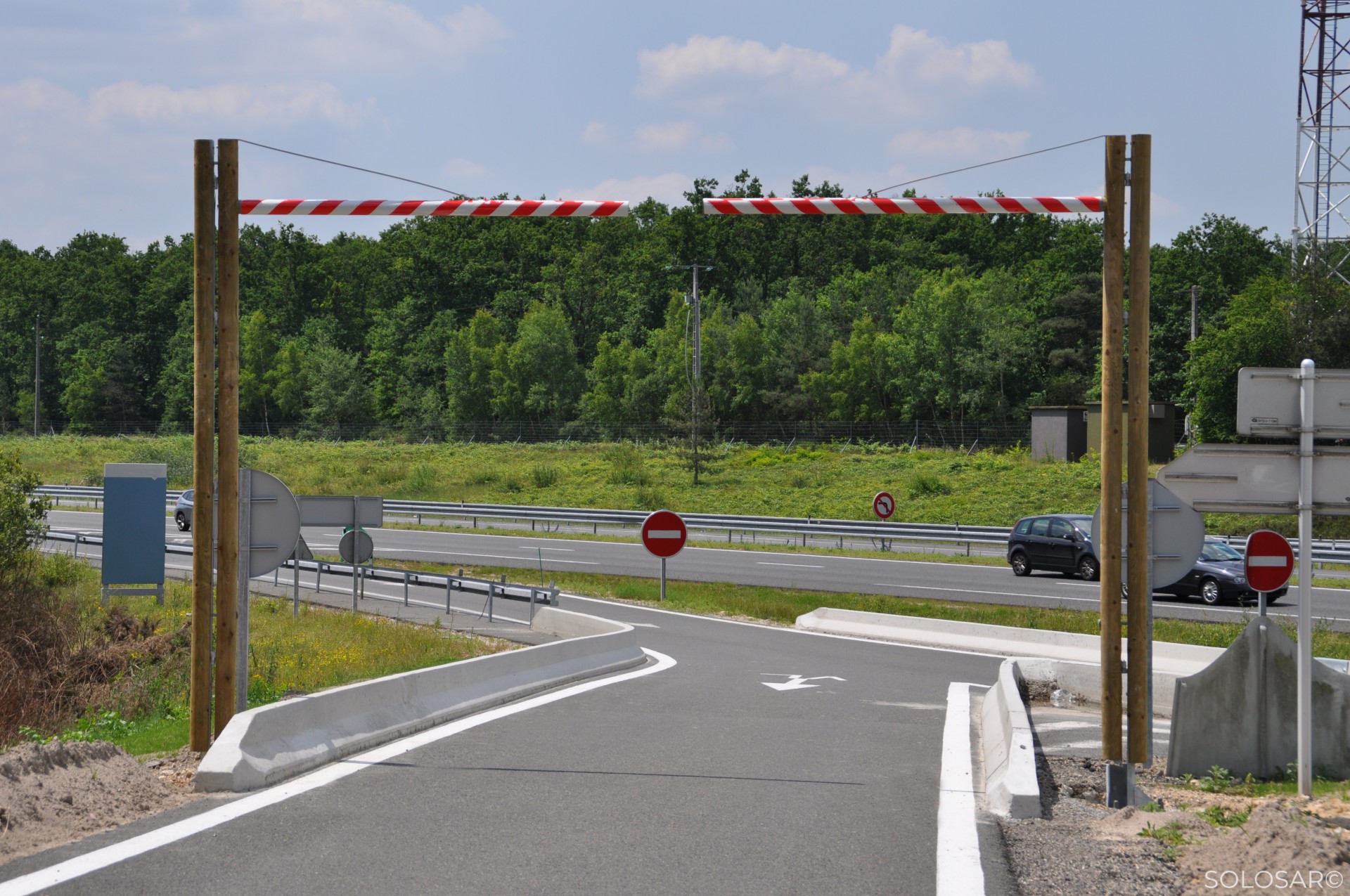

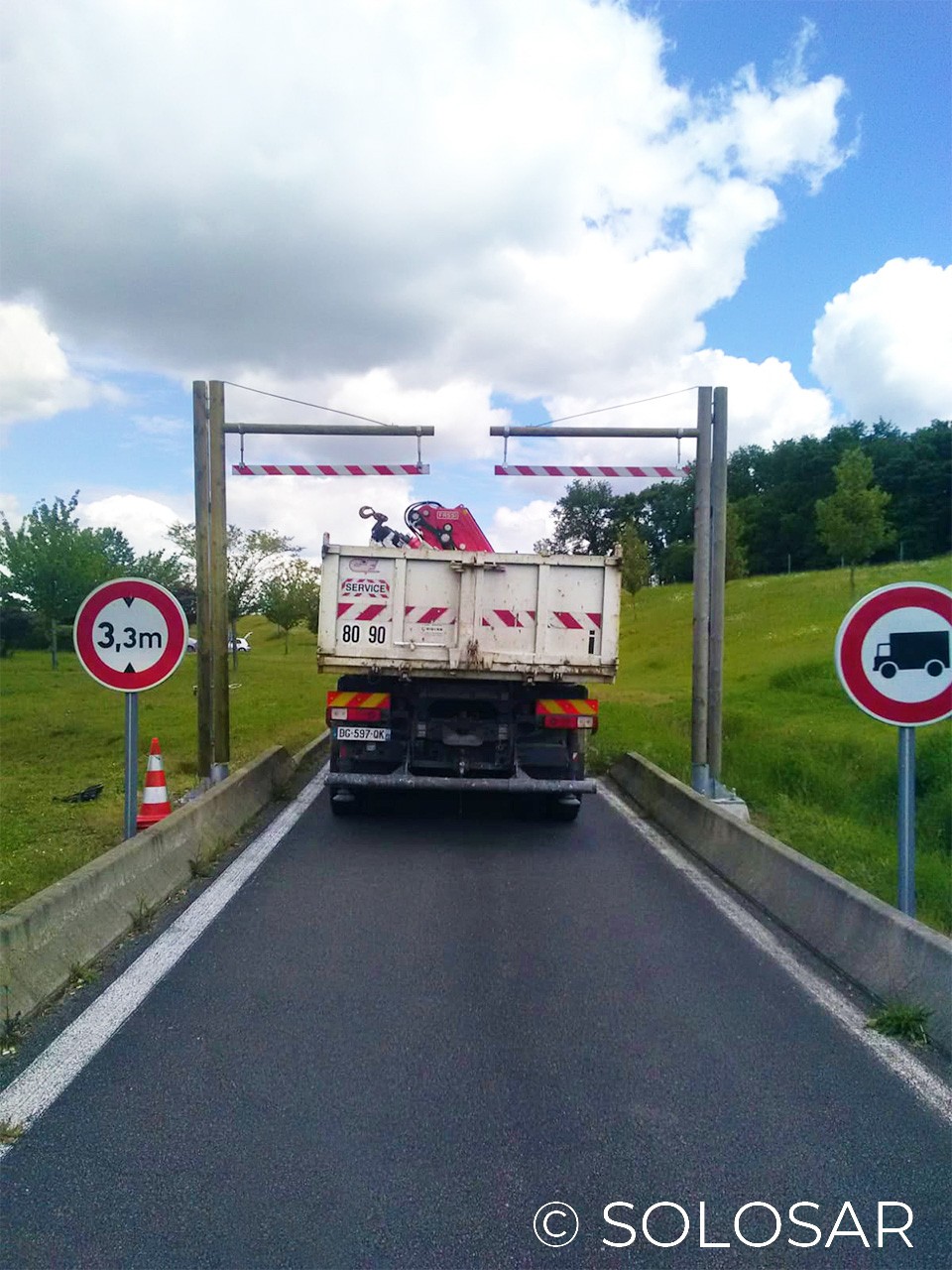

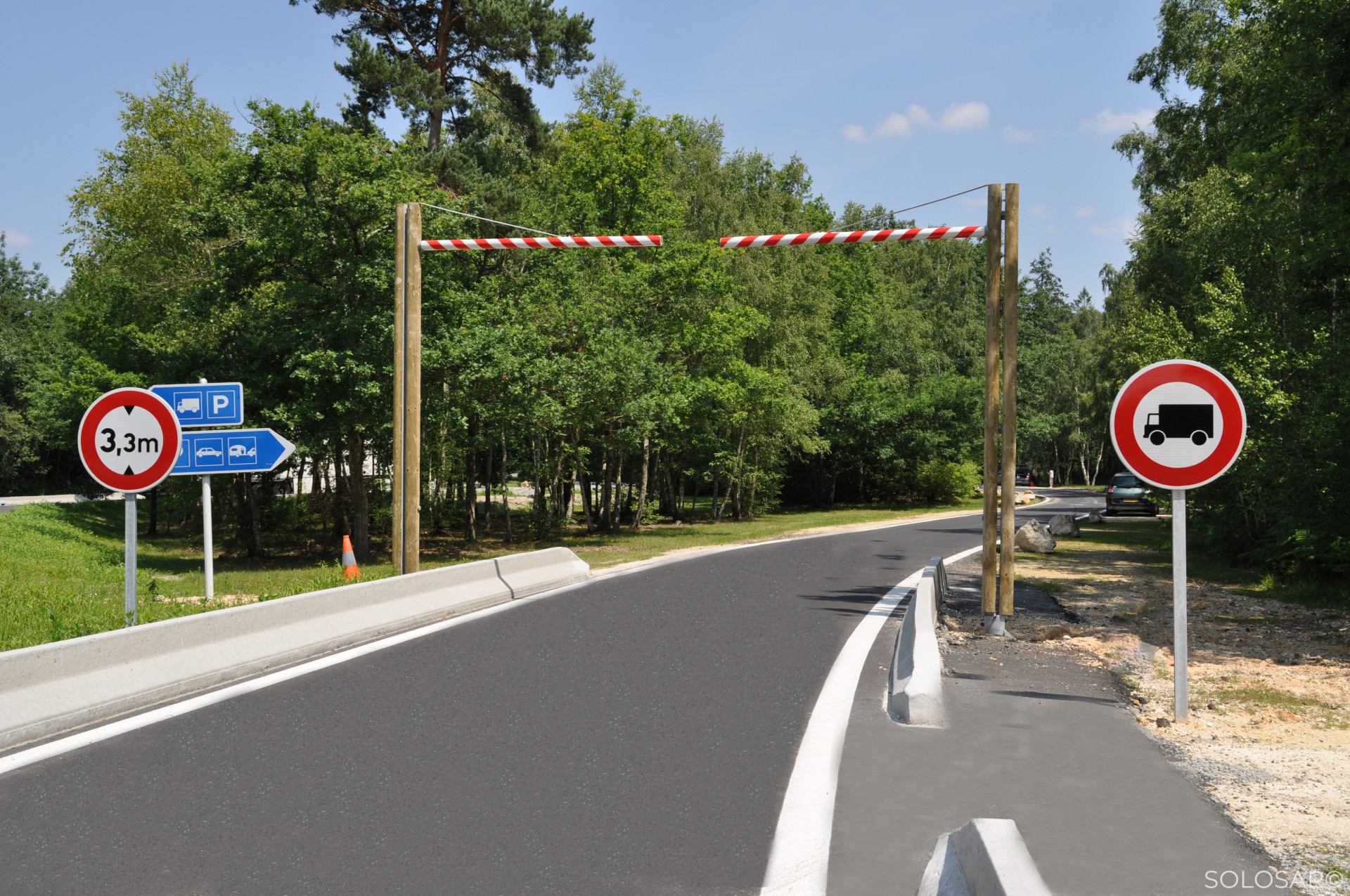

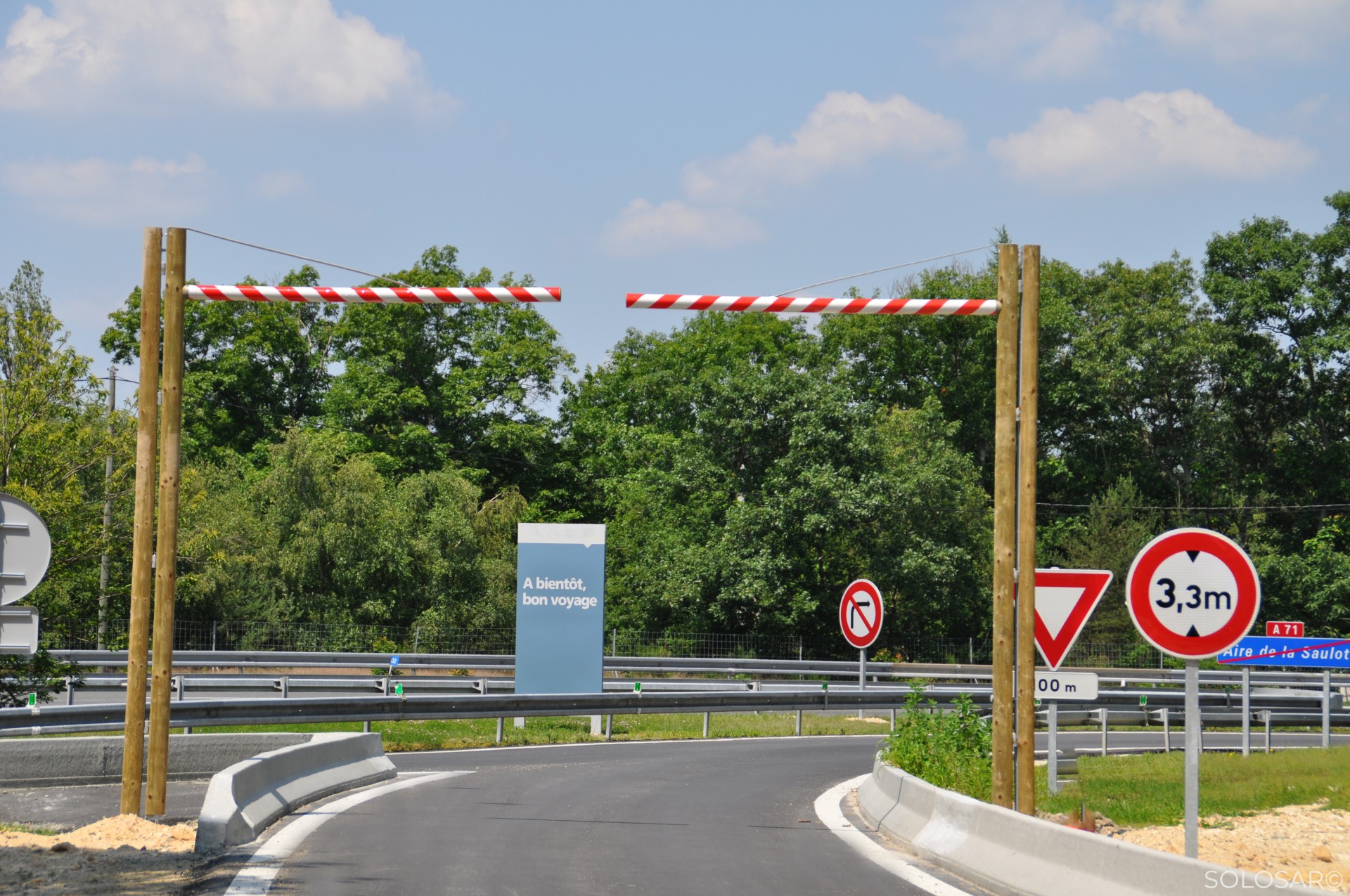

The SOLONATURE® double-wing pivoting height restriction gantry, specially designed for heavy goods vehicles, makes it possible to prevent oversized trucks from entering rest areas. Its height can vary between 2.30 m and 4.00 m!

It's made entirely of galvanised steel and clad in class 4 autoclaved solid wood, and stands out for its durability and sturdiness. The pivot, which opens easily thanks to an exclusive cam and hinges, allows vehicles of greater height to pass through on occasion, and is anchored to the ground.

The special P.L. double-leaf pivoting height restriction gantry is dimensioned in accordance with Eurocodes, and our design office is at your disposal for any specific dimensions you may require. A wide range of options are available, including a wide-grip locking pin, a signpost, a hanger for retro-reflective film, etc.).

EXCLUSIVE PRODUCT BENEFITS :

• Helps prevent access to rest areas by oversized HGVs
• Combination of wood and steel: robust, attractive and durable
• Reduced vandalism, controlled maintenance budget and constant safety
• Installation: post to be embedded in concrete block
• Rail and stiffener: total control over plumbness
• Locked (closed position) by steel pin to be inserted in the pivoting post and fireman's padlock + key
• Made in France

SPECIFICATIONS:

Steel components: S235 JR hot-dip galvanised to ISO 1461

Solid wood components: autoclaved Scots pine class 4 to EN 335, guaranteed for 10 years against rotting.

Post: pre-assembled mixed wood and steel - steel upright complete with Ø160 cladding - Hinges with grease nipple

Clearance width: 5 to 6 m (width) x 2.30 to 4,00 m (height)

Typical application: restricting access to motorised vehicles in car parks and rest areas or site access.

Custom-made products available on request: click here to contact us please.
