Double-leaf pivoting height restriction gantry - steel with solid wood cladding

The SOLONATURE® double swing height restriction gantry is now the market standard. Made entirely from galvanised steel and clad in class 4 autoclaved solid wood, it is durable and robust, and is THE solution when it comes to limiting access to a site in terms of height.

The pivot, which opens easily thanks to an exclusive cam and hinges, allows vehicles of greater height to pass through on occasion, and is anchored to the ground.

The SOLONATURE® double-wing pivoting height restriction gantry is designed in accordance with the Eurocodes, and our design office is at your disposal for any specific dimensions you may require. A wide range of options are also available, including a wide-grip locking pin, a signpost, a hanger for retro-reflective film, etc.).

EXCLUSIVE PRODUCT ADVANTAGES :

• Combination of wood and steel: robust, attractive and durable
• Reduced vandalism, controlled maintenance budget and constant safety
• Installation: post to be embedded in concrete block
• Rail and stiffener: total control over plumbness
• Locked (closed position) by steel pin to be inserted in the pivoting post and fireman's padlock + key
• Made in France
• Available in single-leaf version

SPECIFICATIONS:

Steel components: S235 JR hot-dip galvanised to ISO 1461

Solid wood components: autoclaved Scots pine class 4 to EN 335, guaranteed for 10 years against rotting.

Post: pre-assembled mixed wood and steel - steel upright complete with Ø160 cladding - Hinges with grease nipple

Clearance width: 5 to 6 m (width) x 2.25 m (height)

Made to measure: please contact us

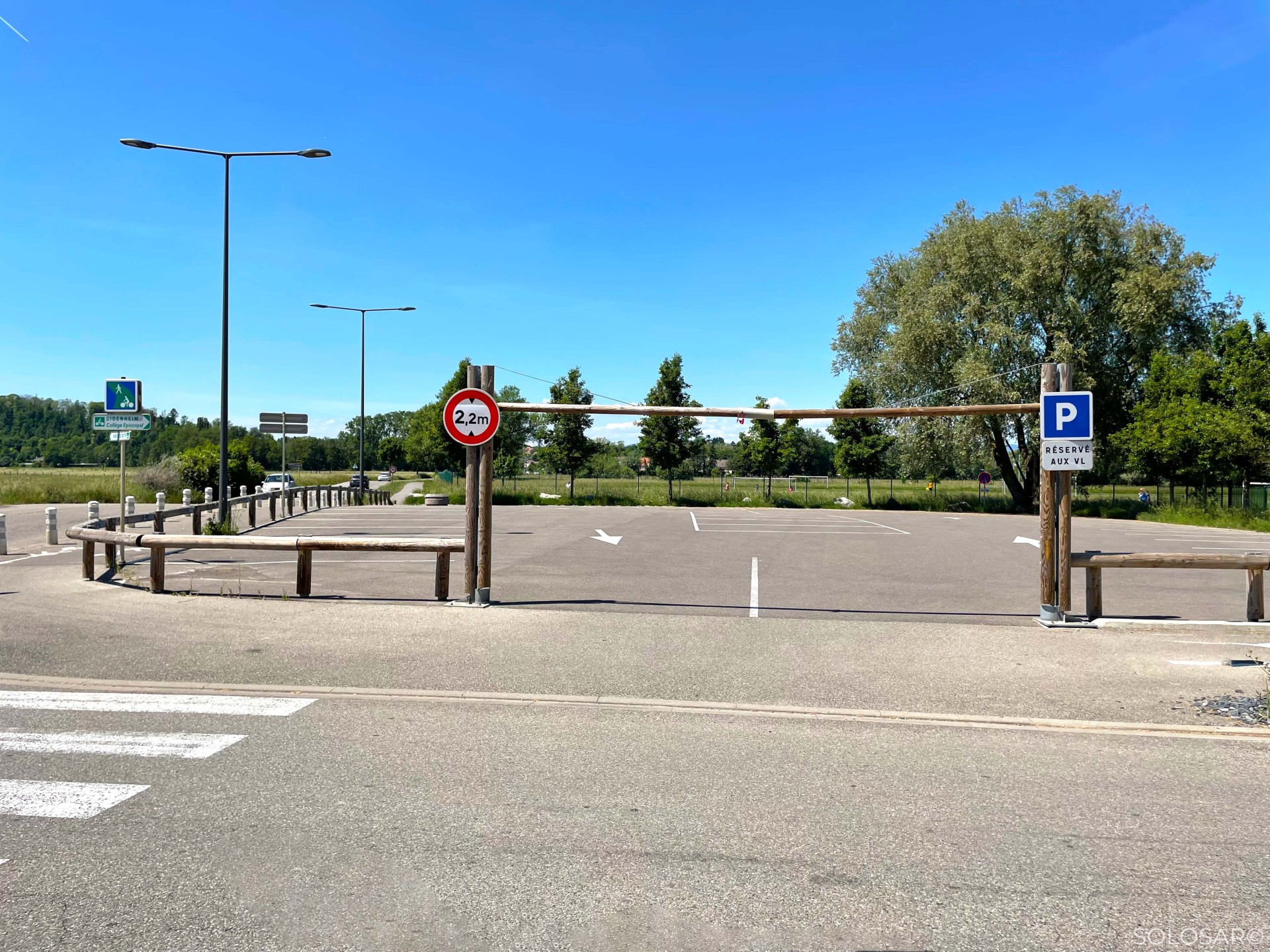

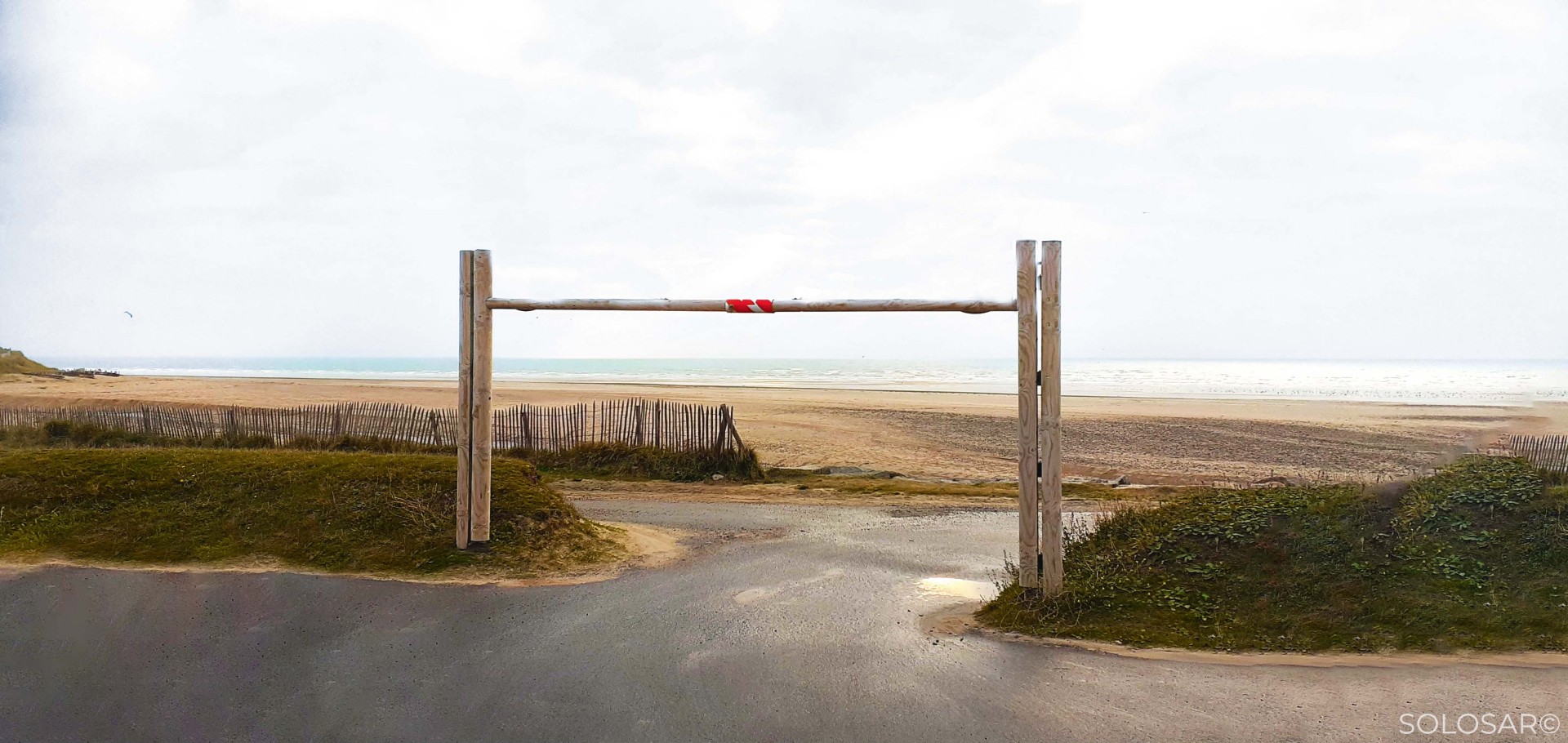

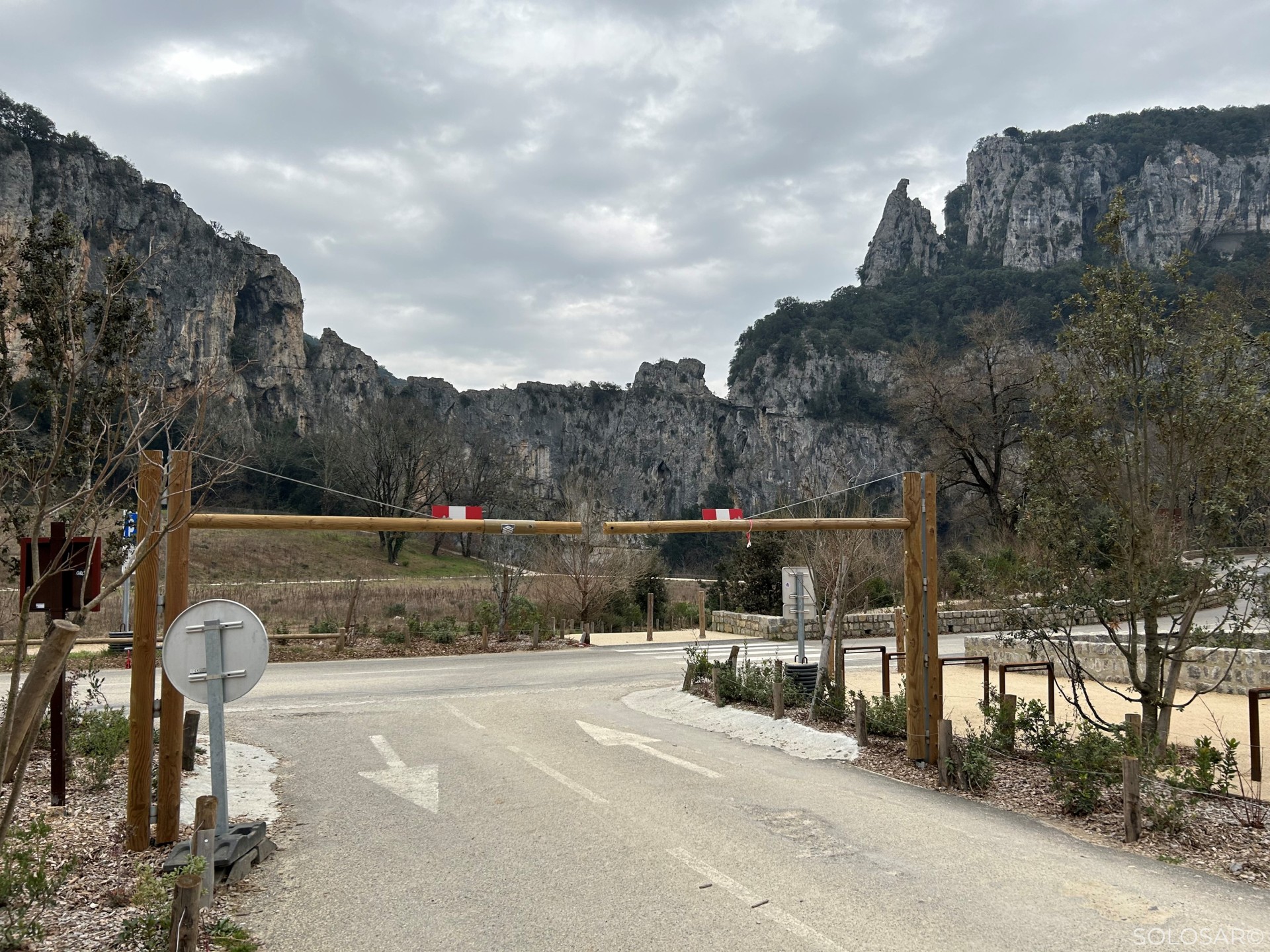

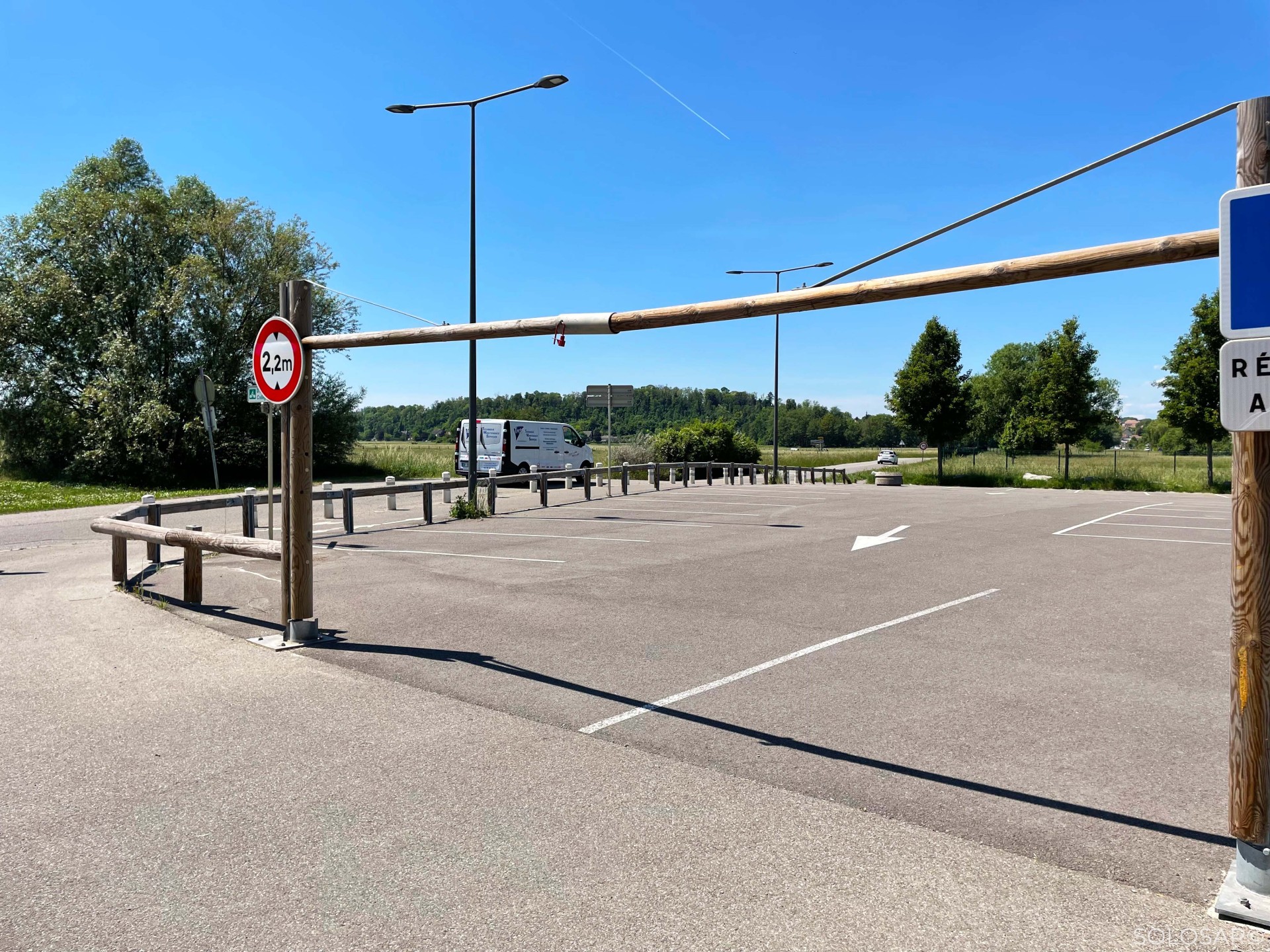

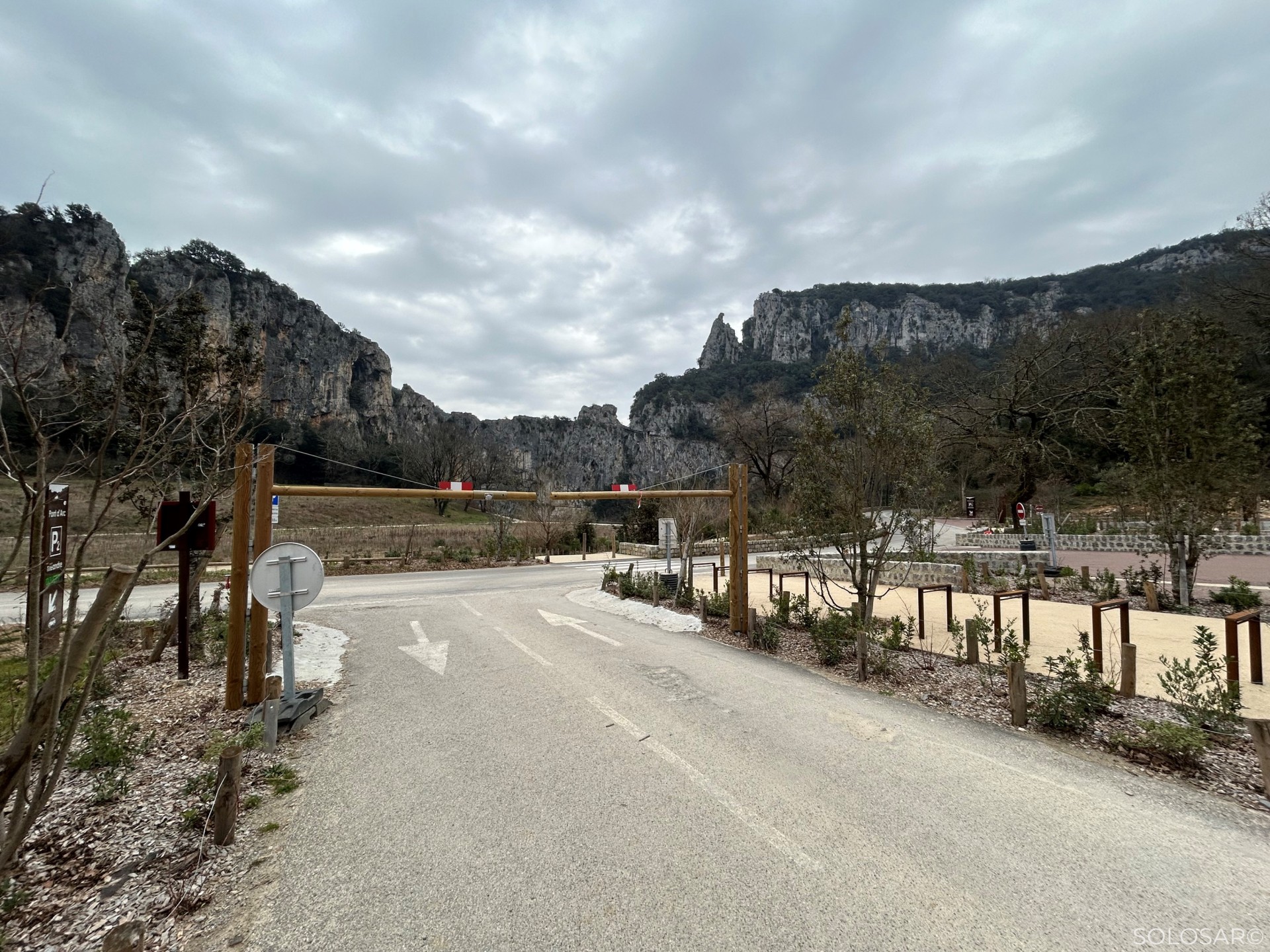

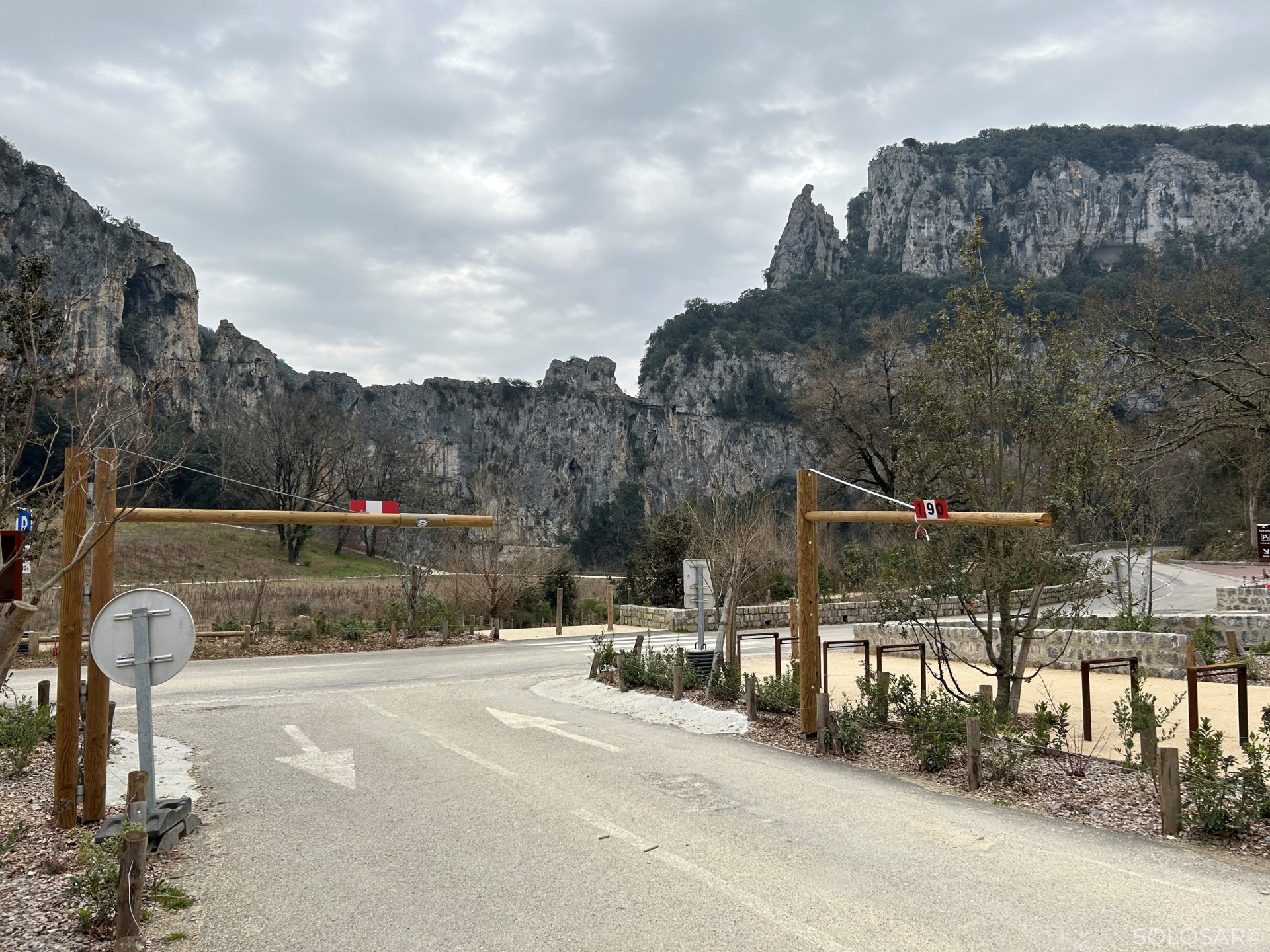

Typical application: restricting access to motorised vehicles in car parks and rest areas or site access.

Custom-made products available on request: click here to contact us please.
