ARCACHON timber clad fence

The ARCACHON low fence has a multitude of applications and can be installed in a modular, flexible way. This model has a C100 post that can be sunk or embedded in the ground, providing unrivalled straightness and durability without sacrificing aesthetic appeal, as the entire front of the post is clad in autoclaved wood. The connection is made by a flat metal joint which prevents the horizontal rail from sagging over time.

All our wooden components are made from class 4 autoclaved Scots pine and come with a 10-year guarantee.

ADVANTAGES and BENEFITS :

• Solid wood: aesthetic appeal and durability
• Benefits: constant safety reinforced by factory-fitted retroreflective film.
• Installation: to be embedded in concrete block
• Installation instructions: lay in dry concrete - check straightness with a spirit level.
• Similar product : DEAUVILLE or AMSTERDAM model

SPECIFICAT

Steel components: S235JR hot-dip galvanised to ISO 1461

Solid wood roundels ø160mm: autoclaved Scots pine class 4 to EN 335, guaranteed for 10 years against rotting.

Post: C100 galvanised steel - 5 mm thick - to be sunk or embedded in the ground OR on a plate to be embedded in the asphalt or concrete slab (optional)

ø160mm post cladding: steel masking at front using machined wooden logs

3 models: post spacing 2, 2.50 and 3 m

Height above ground: 700 mm

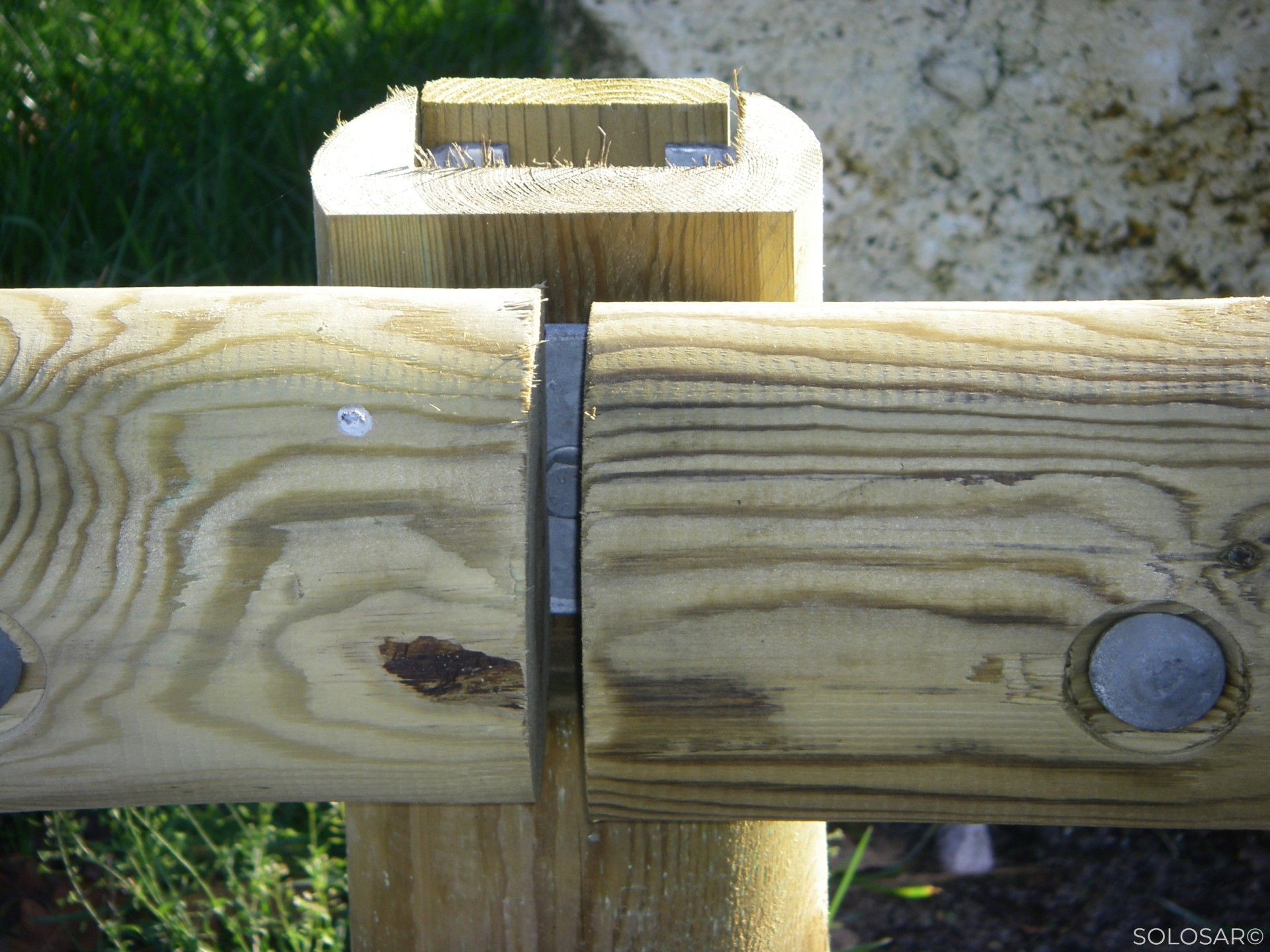

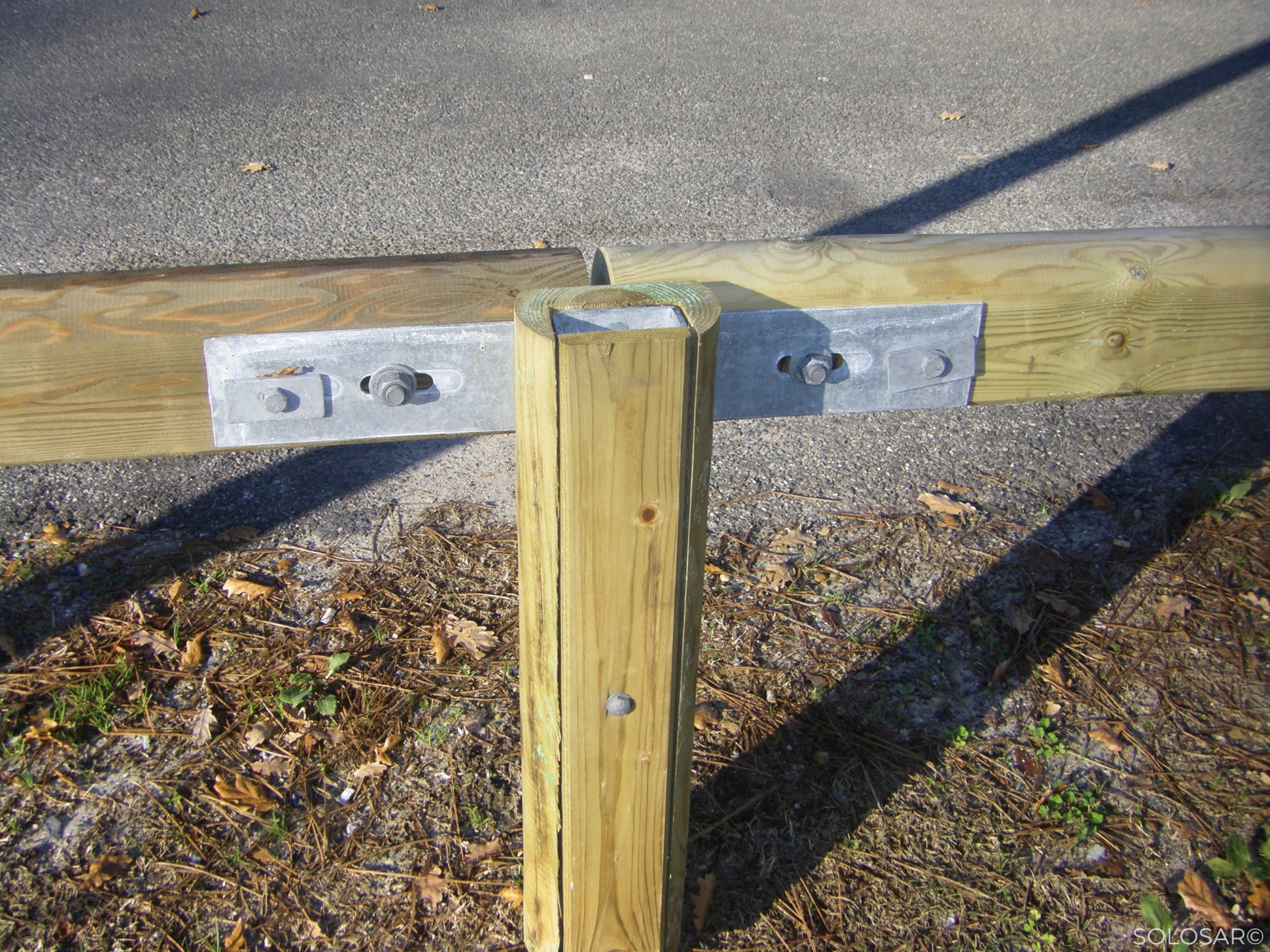

Flat steel splice for durable connection of components

Custom-made products available on request: click here to contact us please.
