SOLOBOIS® S42 (N2-W5-A)

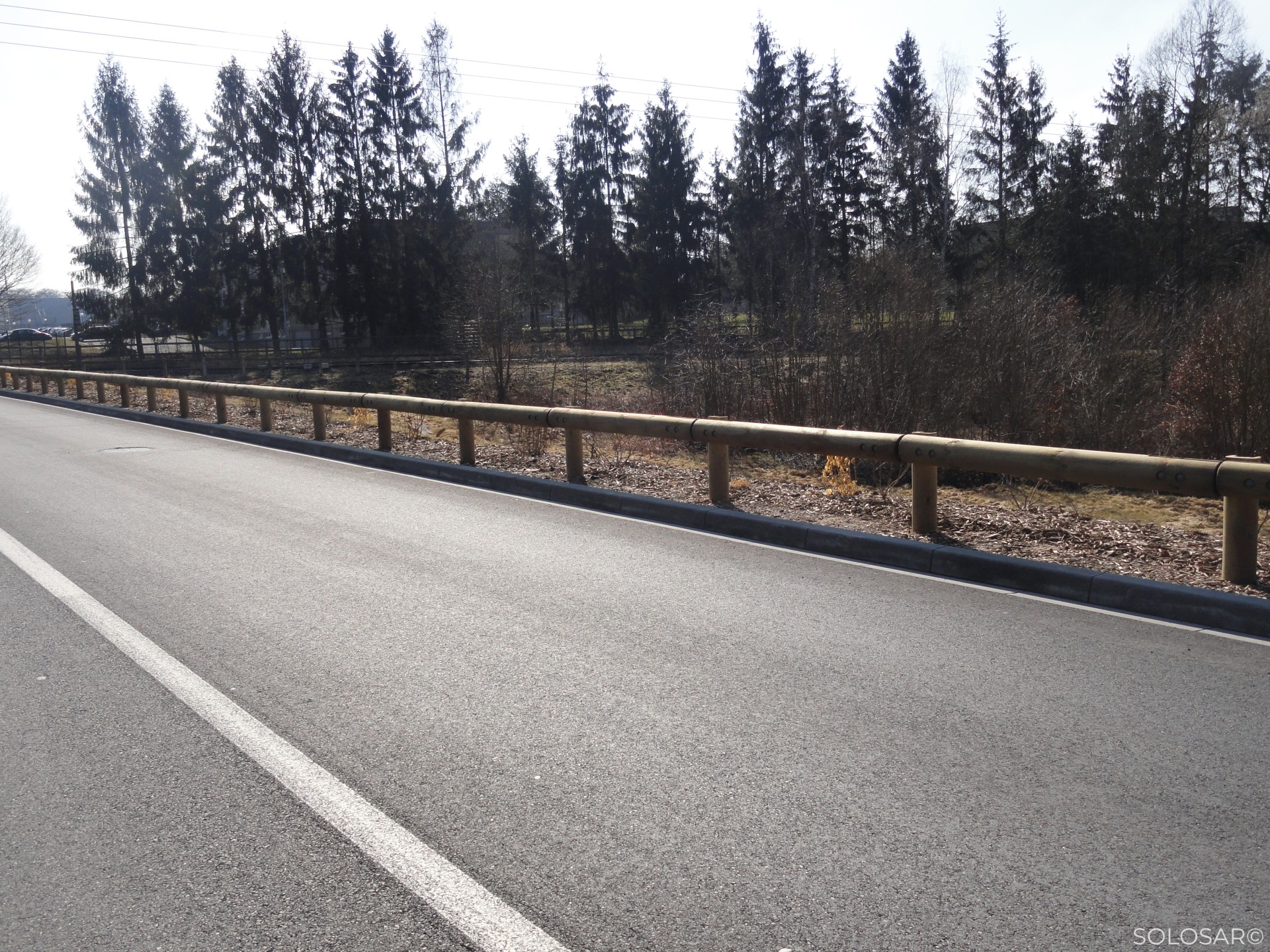

SOLOBOIS® S4.2 (NATUR RAIL in english) is a product developed and manufactured by SOLOSAR. Guaranteed for 10 years, the SOLOBOIS® guardrail is ideal wherever road safety and integration into the environment are paramount, and is certified to level N2-W5-A in accordance with EN 1317-2 by ASCQUER.

EXCLUSIVE PRODUCT BENEFITS :

• Combination of wood and steel: robust, attractive and durable
• Wooden components guaranteed for 10 years against premature rotting
• Installation: support to be embedded in the ground. Support on base plate available (outside CE scope)
• Bending radius up to 8 m with a 4 m rail
• Easy to install
• Invisible steel at the front of the device
• Available in galvanised or powder-coated finish.
• Made in France (Moselle)
• Available in a version with 4 m posts interdistance: SOLOBOIS® S4.4

OPTIONS (see all options under ACCESSORIES)

• protective screen for motorcyclists
• standard or spike tail
• sealed or short straight end
• powder-coated finish in RAL 7008 wood colour

SPECIFICATIONS:

This device has been tested to EN 1317 in N2 - W5 - ASI A and is CE certified by ASCQUER.

The steel is completely invisible from the front and rear of the device, and the metal support is hidden by a wooden cladding.

The S4.2 model is available in a galvanised or powder-coated finish.

Steel components: S235 JR hot-dip galvanised to ISO 1461

Solid wood components: class 4 autoclaved Scots pine to EN 335, guaranteed for 10 years against rotting.

Support: C100 profile, length 1.50 m (2 m and on base plate optional)

Dynamic deflection: 1.40 m

Dimensions: 700 m (h) x 350 mm (w)

Pre-assembled 4 m horizontal rail

Available in a version with 4 m posts interdistance: SOLOBOIS® S4.4

Loading capacity per full lorry: 720 ml of SOLOBOIS® S4.2 guardrail
