GS2 PERFORMANCE - N2-W4
Reference: GS2 P
A CE range based on French NF components
- Description
- Technical data
- Product view
- Downloads
Description
GS2 PERFORMANCE is an N2-W4-A level road safety barrier designed and developed by SOLOSAR and CE by ASCQUER marked according to EN 1317 and 100% compatible with French NF systems.
The GS2P device is a simple roadside barrier based on the French GS2-NF.
The GS2P barrier has been developed with a view to performance and suitability for generic French products. It's also a standard in Africa and in some european countries.
Certified transitions available on the following products: GS2-NF / GRC-NF / GCU-NF / GS4P / HBB 2.0b
The system is composed of identical components of the French GS2 NF, except for the bolts which have been optimised to ensure better operation.
The working width of the GS2P is reduced by one W class compared to the one of the GS2-NF.
Technical data
SPECIFICATIONS :
Post: C100-NF in S235 JR steel;
Length: 1,50 m
Post spacing : 2 m
Weight / lm: 20,5 kg
Tested length: 92 m in level
Length of each ramped-down end terminal : 12 m
Type of post: profile AF-NF in S235 JR steel
CE mark: 1826-CPD 09-02-05-DR01
Available in 4 m post spacing: GS4 PERFORMANCE

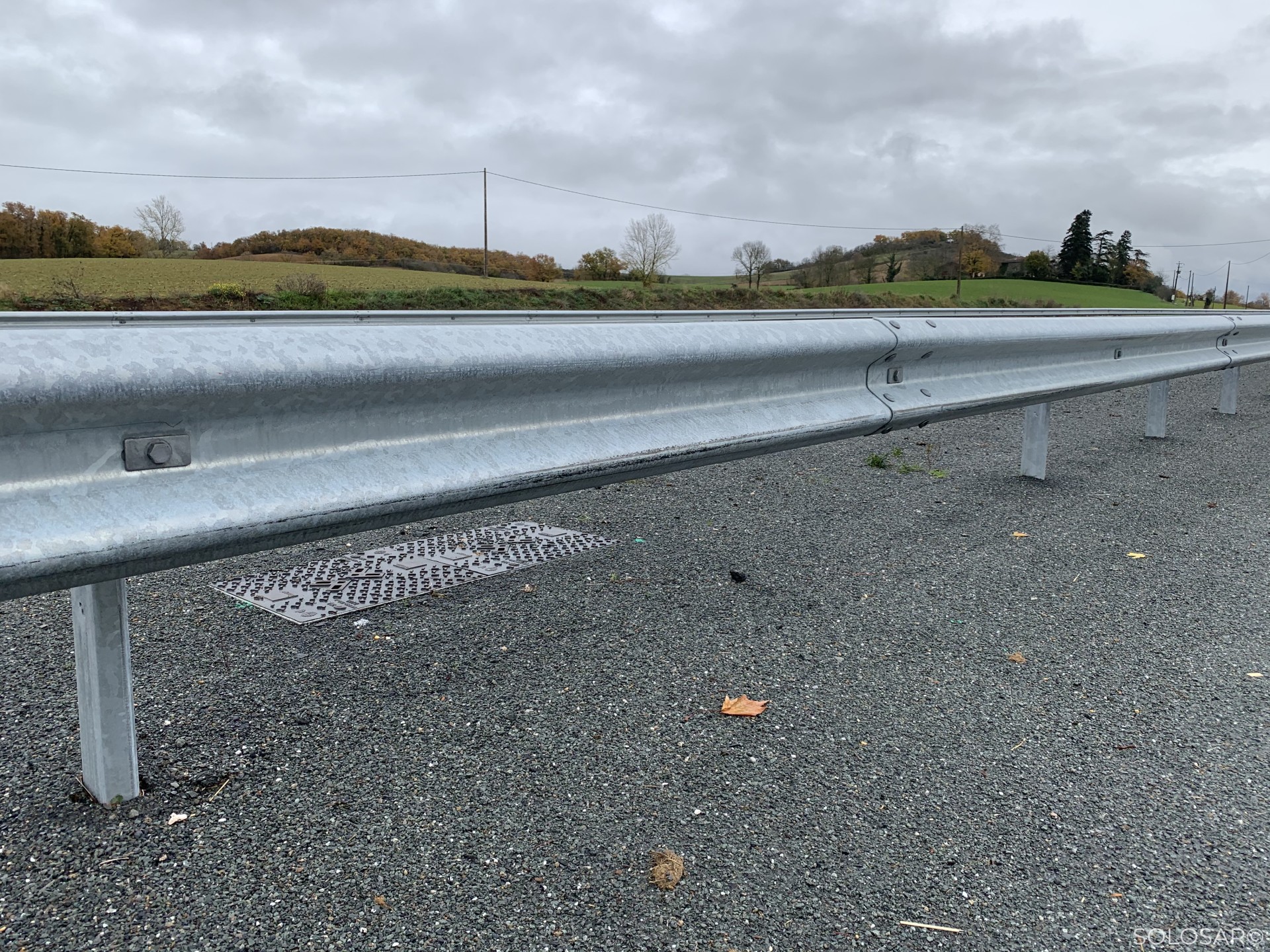

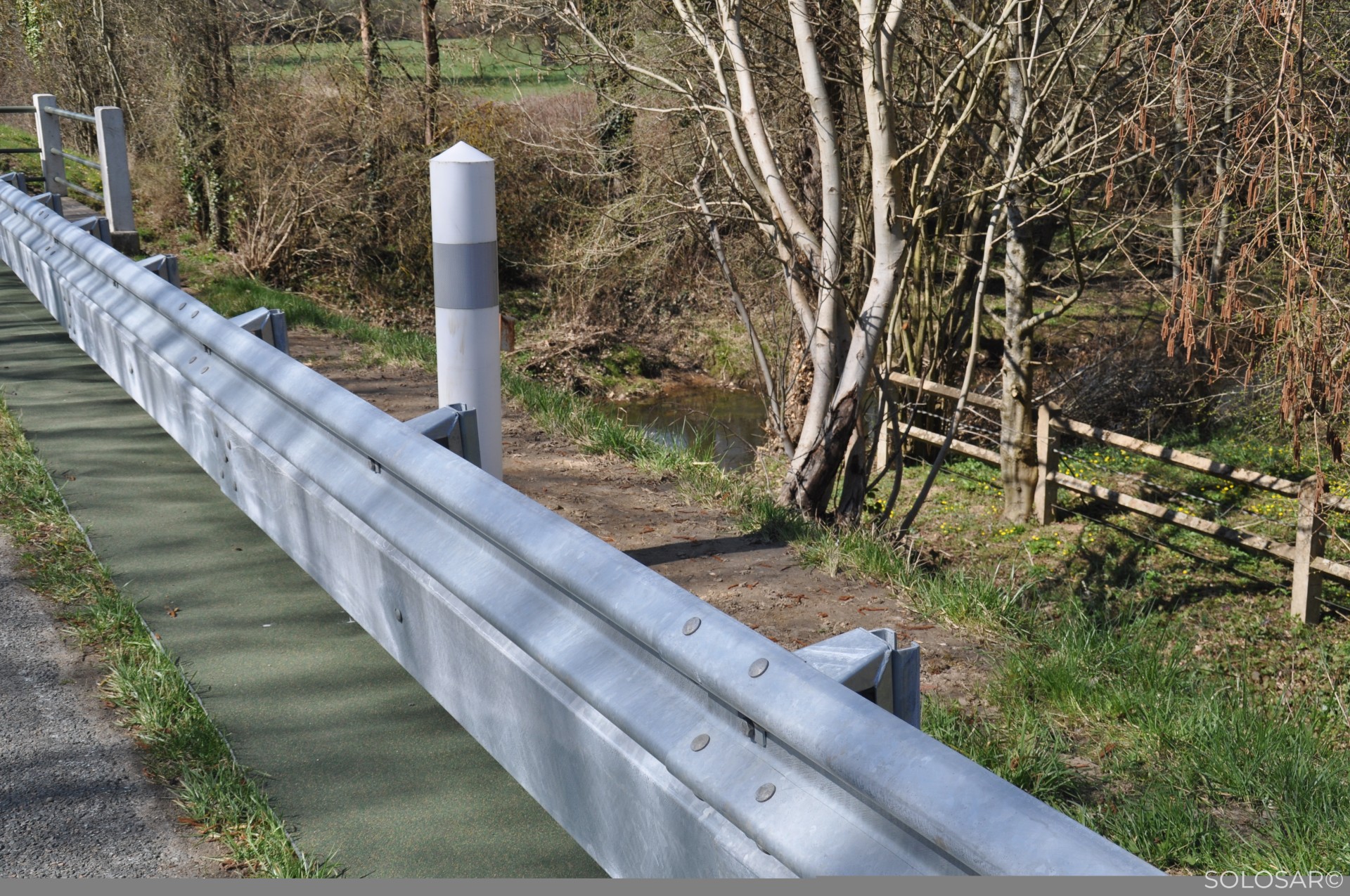

Product view
Downloads
- Certificat CE ASCQUER ( accès réservé)
