GRC -NF
Reference: GRC
French standard road restraint system
- Description
- Technical data
- Product view
Description
The GRC-NF guardrail is a product of the French state. This product is a guardrail for current section especially made for connections or isolated obstacles.
Length tested according to NF P98-417: 100 m recommended in level N2.
Components of the system are manufactured according to NF P98-415 (02/2018) and NF P98-416 (07/2018) standard.
Transitions available on: GS4 / GS2 / GRC / GCU
Technical data
SPECIFICATIONS:

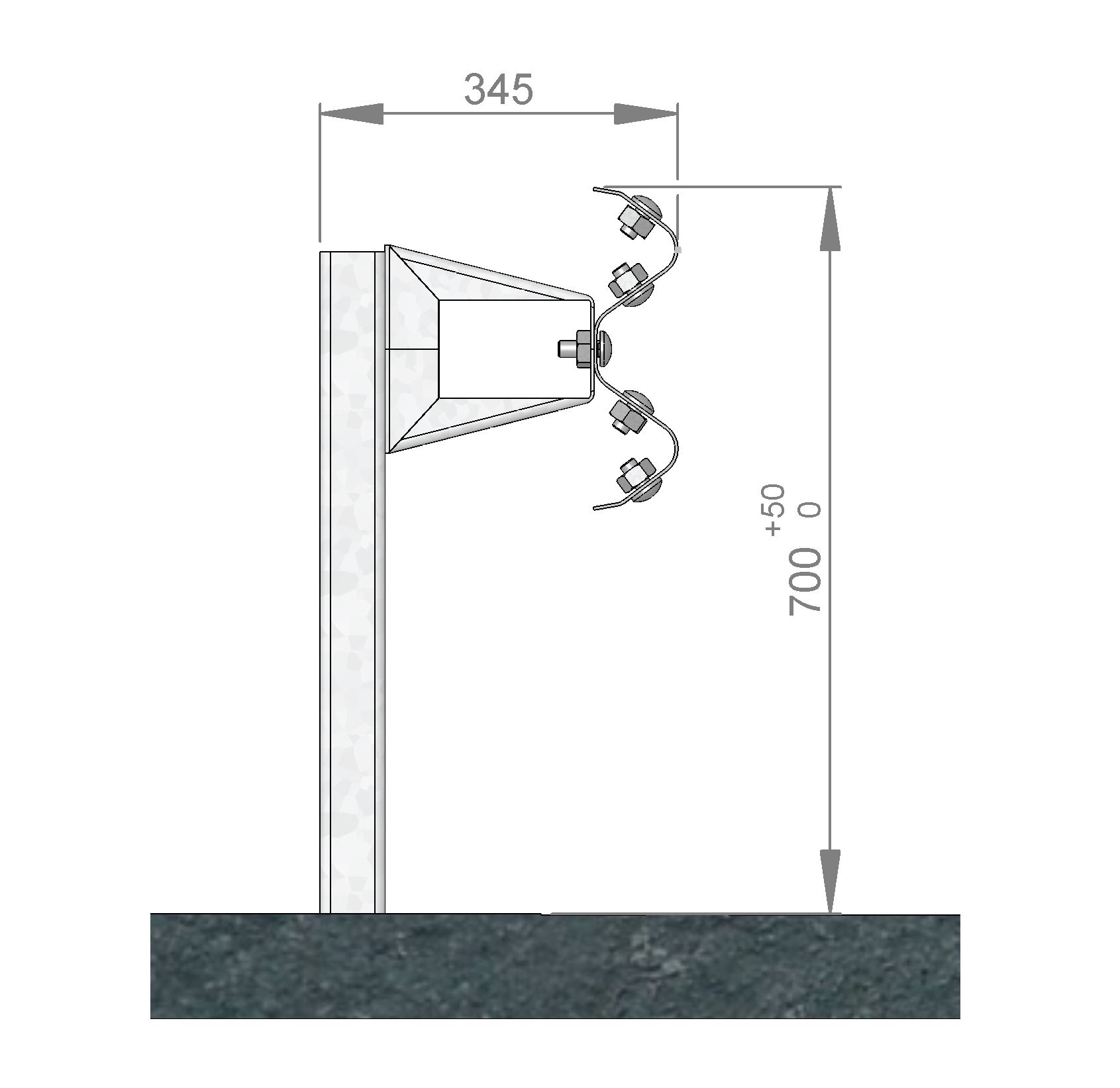

Post: C125-NF in S235 JR steel; length: 1,50m or 2m
Beam profile: profile AF-NF in S235 JR steel (Also available in BF-NF profile in 235 JR steel)
Weight per lm for a AF-NF profile with 1,5m post: 21,6 kg

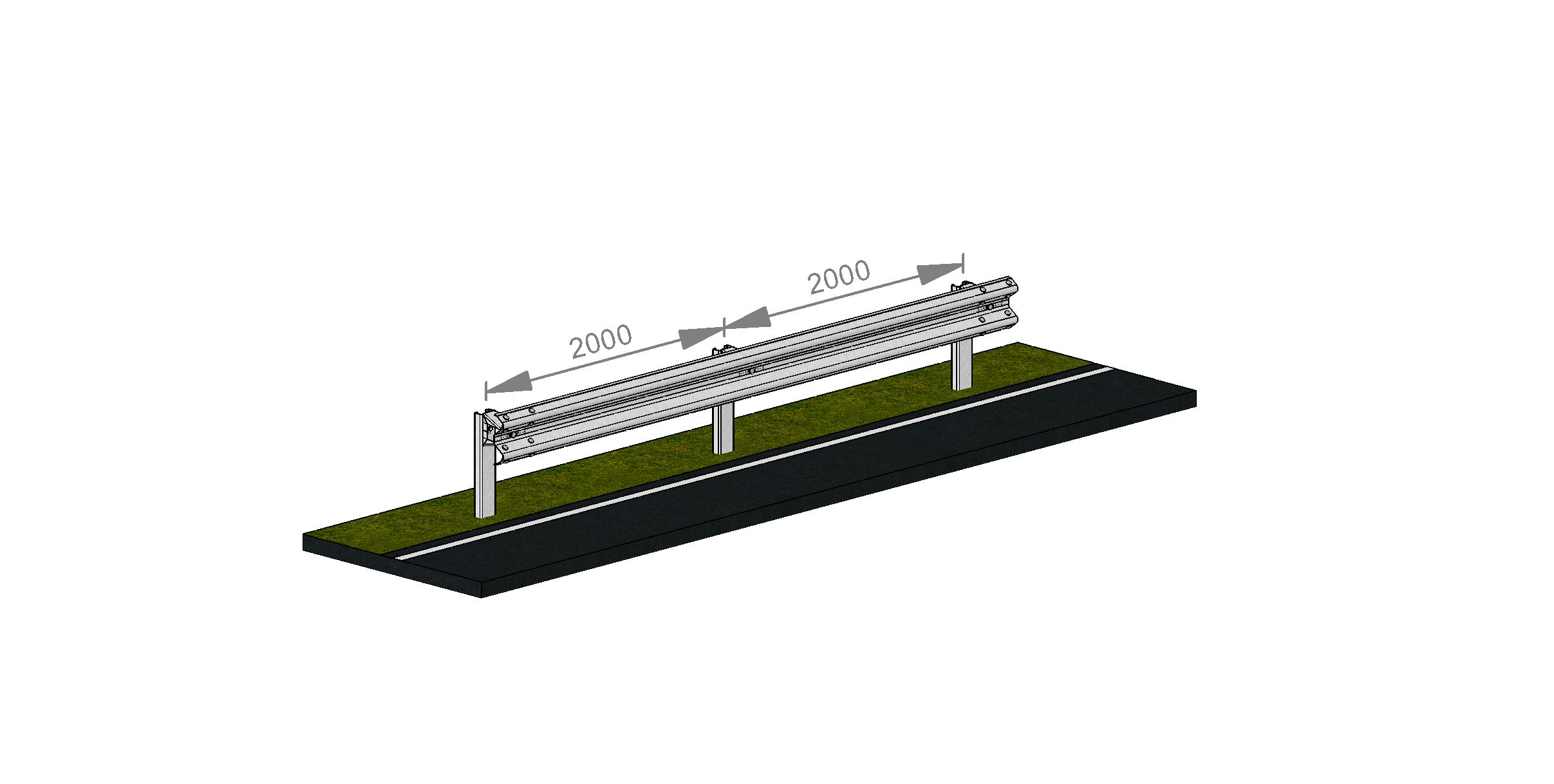

Post spacing: 2 m
Product view
